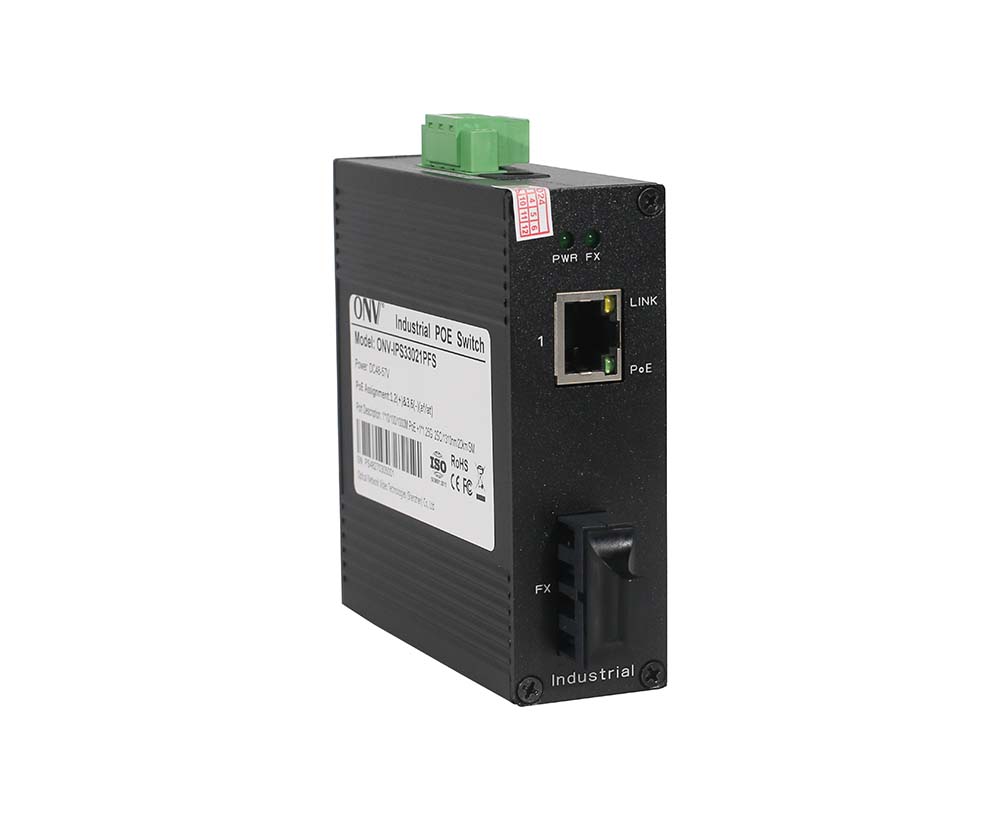

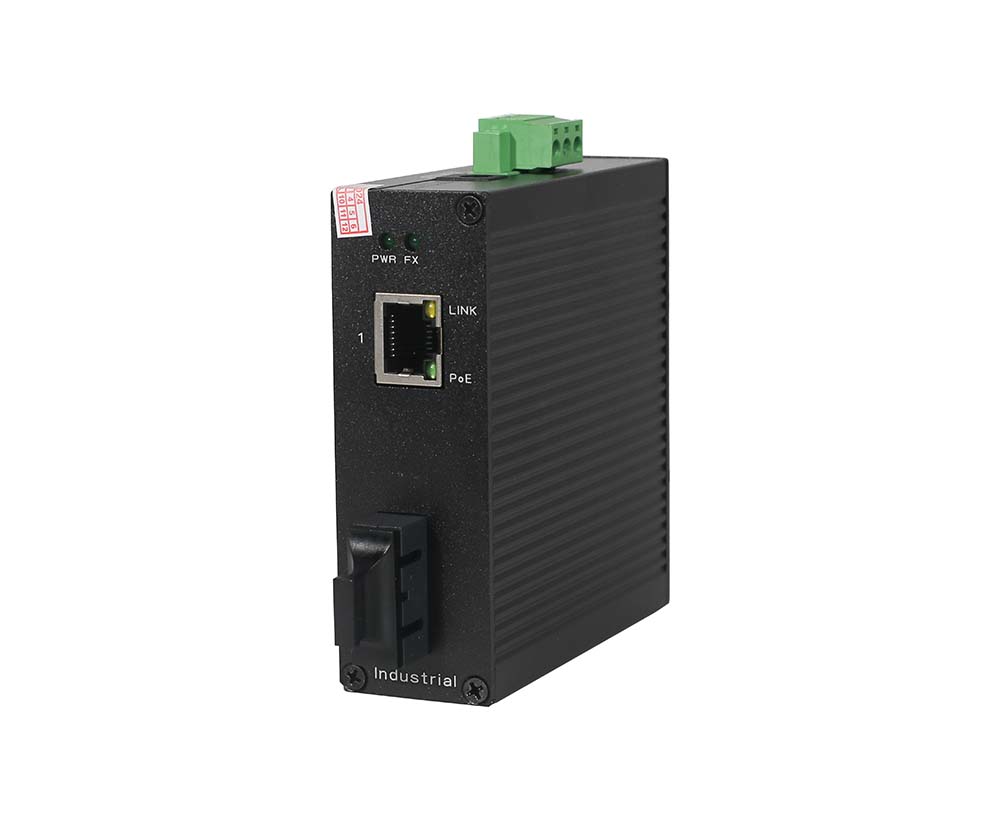

OVERVIEW
The ONV-IPS33021PFS is a Gigabit industrial PoE fiber switch independently developed by ONV. It has 1*10/100/1000Base-T RJ45 port and 1*1000Base-X uplink SC fiber port. Port 1 can support IEEE 802.3 af/at PoE standard and the single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize power-receiving devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
Gigabit access
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and uplink SC fiber port to meet the networking requirements of various scenarios.
Smart PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 1*10/100/1000Base-T RJ45 port supports PoE power to meet the PoE power supply needs of various scenarios in the industrial field.
Stable and reliable
◇ CCC, CE, FCC, RoHS.

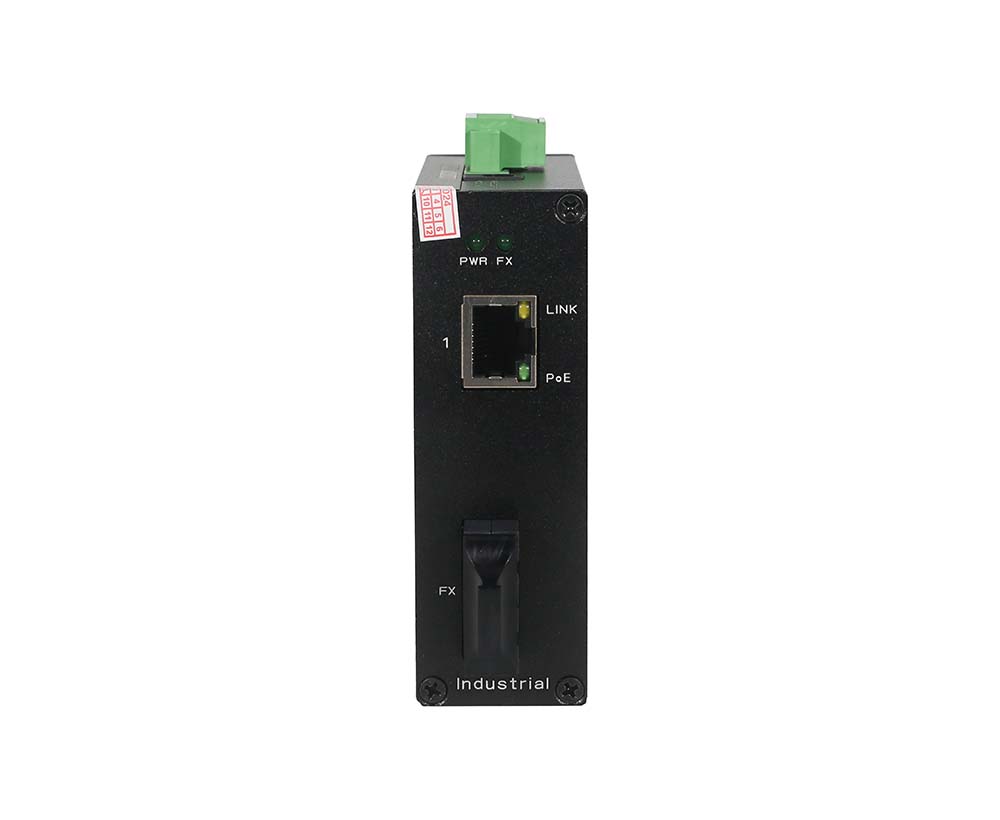

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.

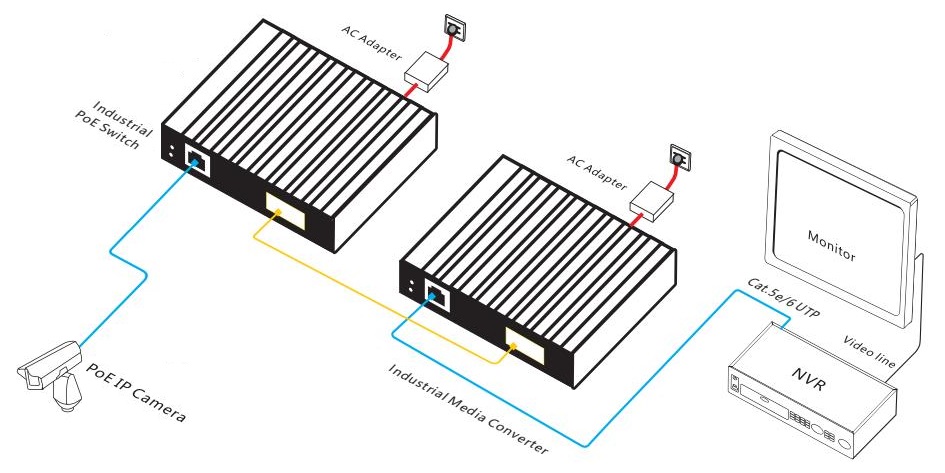

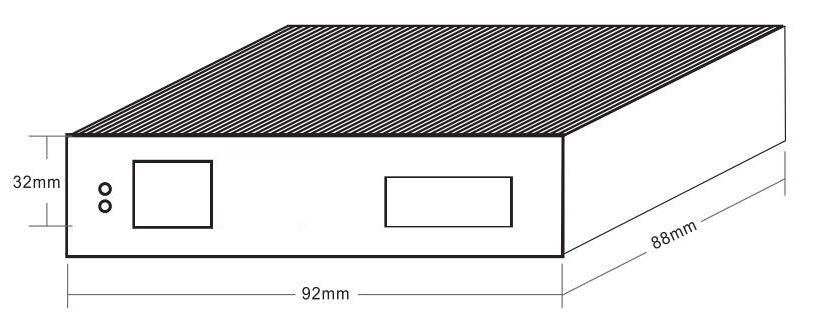

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS33021PFS |
Unmanaged industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1000M uplink single-mode dual fiber SC optical module (1310nm/20km). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS33021PFS-M |
Unmanaged industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1000M uplink multi-mode dual fiber SC optical module (850nm/550m). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS33021PFS-A |
Unmanaged industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1000M uplink single-mode single fiber SC optical module (1310nm/20km or 1550nm/20km). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS33021PFS-B |
Unmanaged industrial PoE switch with 1*10/100/1000M RJ45 port and 1*1000M uplink single-mode single fiber SC optical module (1550nm/20km or 1310nm/20km). Port 1 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
24W/36W |
|
ONV-IPS33032PFS |
Unmanaged industrial PoE switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink single-mode dual fiber SC optical module (1310nm/20km). Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
36W/60W |
|
ONV-IPS33032PFS-M |
Unmanaged industrial PoE switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink multi-mode dual fiber SC optical module (850nm/550m). Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
36W/60W |
|
ONV-IPS33032PFS-A |
Unmanaged industrial PoE switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink single-mode single fiber SC optical module (1310nm/20km or 1550nm/20km). Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
36W/60W |
|
ONV-IPS33032PFS-B |
Unmanaged industrial PoE switch with 2*10/100/1000M RJ45 ports and 1*1000M uplink single-mode single fiber SC optical module (1550nm/20km or 1310nm/20km). Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and DIN rail mounting. |
36W/60W |
|
Note: The power supply is not included and needs to be purchased. |
||
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
2-port Gigabit industrial PoE switch |
1 |
Set |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
POWER SUPPLY
|
Product |
Model |
Description |
Unit |
|
36W DIN Rail Industrial Power Supply |
GWS-DP36-48 |
DIN Rail 36W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 0.56A Output Voltage: DC48V, 0.75A Operation Temperature: -40℃ to +70℃ |
PC |
|
60W DIN Rail Industrial Power Supply |
GWS-DP60-48 |
DIN Rail 60W single set of output power supply Input Voltage: AC100V~240V 50-60Hz, 1.0A Output Voltage: DC48V, 1.25A Operation Temperature: -40℃ to +70℃ |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-IPS33042PF |
Unmanaged industrial PoE fiber switch with 2*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-2 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and and DIN rail mounting. |
|
ONV-IPS33064PF |
Unmanaged industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and and DIN rail mounting. |
|
ONV-IPS33064PFG |
Unmanaged industrial PoE fiber switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP fiber port. Port 1-4 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and and DIN rail mounting. |
|
ONV-IPS33108PF |
Unmanaged industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It can support dual DC redundant power input and and DIN rail mounting. |
TECHNICAL SPECIFICATION
|
Model |
ONV-IPS33021PFS |
ONV-IPS33032PFS |
|
Interface Characteristics |
||
|
Fixed Port |
1*10/100/1000Base-T PoE port (Data/ Power) 1*1000Base-X SC fiber port (Data) 2 set V+, V- redundant DC power ports (5P industrial Phoenix terminal) |
2*10/100/1000Base-T PoE ports (Data/ Power) 1*1000Base-X SC fiber port (Data) 2 set V+, V- redundant DC power ports (5P industrial Phoenix terminal) |
|
Ethernet Port |
Port 1/ 1-2 can support10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|
|
Optical Fiber Port |
Gigabit single-mode dual fiber SC optical module. (optional single-mode single fiber/ multi-mode dual fiber optical module) |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
|
|
Chip Parameter |
||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
|
|
Switching Capacity |
12Gbps (non-blocking) |
|
|
Forwarding Rate@64byte |
2.98Mpps |
4.46Mpps |
|
MAC |
2K |
|
|
Buffer Memory |
2M |
|
|
Jumbo Frame |
9.2K |
|
|
LED Indicator |
Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green) |
|
|
PoE& Power Supply |
||
|
PoE Port |
Port 1 |
Port 1-2 |
|
Power Supply Pin |
1/2 (+) 3/6 (-) |
|
|
Power Consumption |
Standby<4W, Full load<32W |
Standby<5W, Full load<60W |
|
Input Voltage/ Interface |
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection. |
|
|
Power Supply |
No, optional 48V/36W or 48V/60W industrial power supply |
|
|
Physical Parameter |
||
|
Operation Temp/ Humidity |
-40~+75°C, 5%~90% RH Non condensing |
|
|
Storage Temp/ Humidity |
-40~+85°C, 5%~95% RH Non condensing |
|
|
Dimension |
92*88*32mm |
|
|
Net /Gross Weight |
0.3kg/ 0.4kg |
|
|

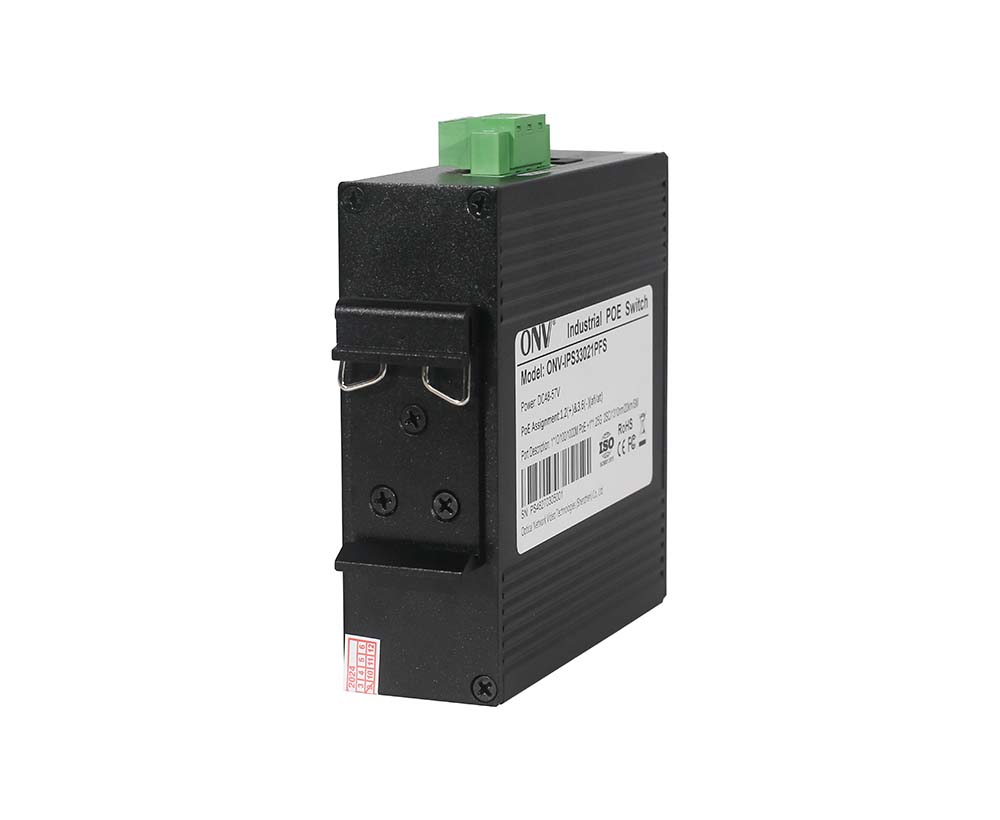

Installation |
Desktop, 35mm DIN Rail |
|
|
Certification& Warranty |
||
|
Lightning Protection |
IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV |
|
|
Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock) |
|
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
|
|
Warranty |
5 years, lifelong maintenance. |
|
