OVERVIEW

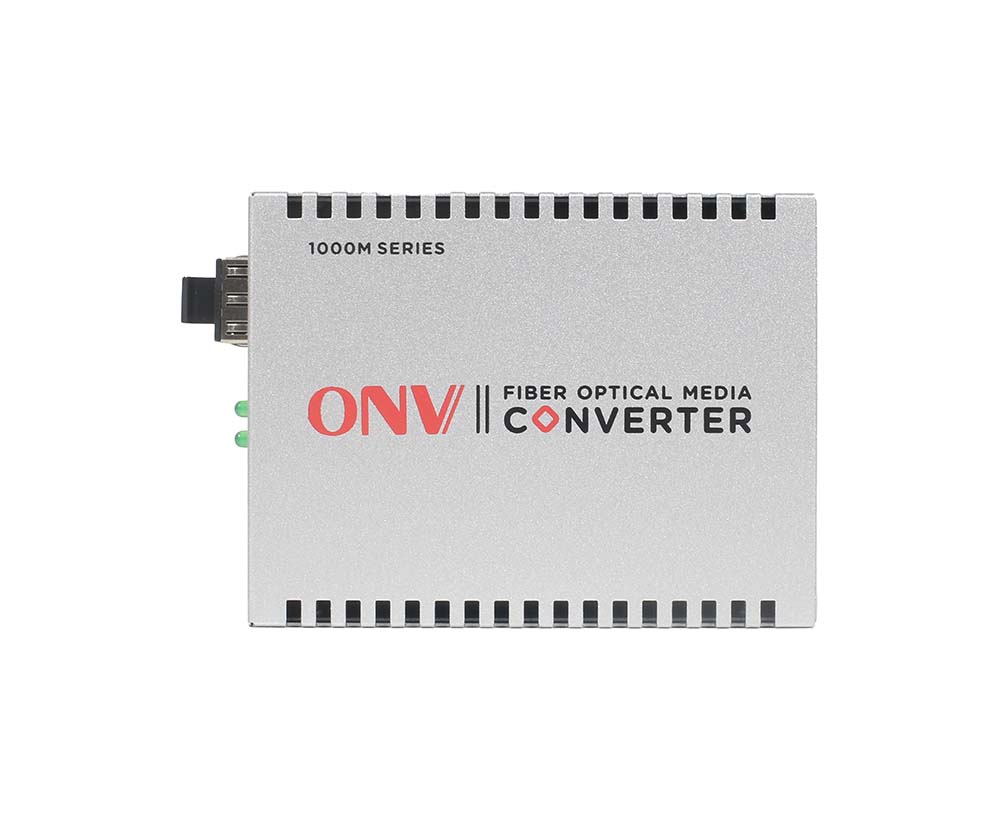

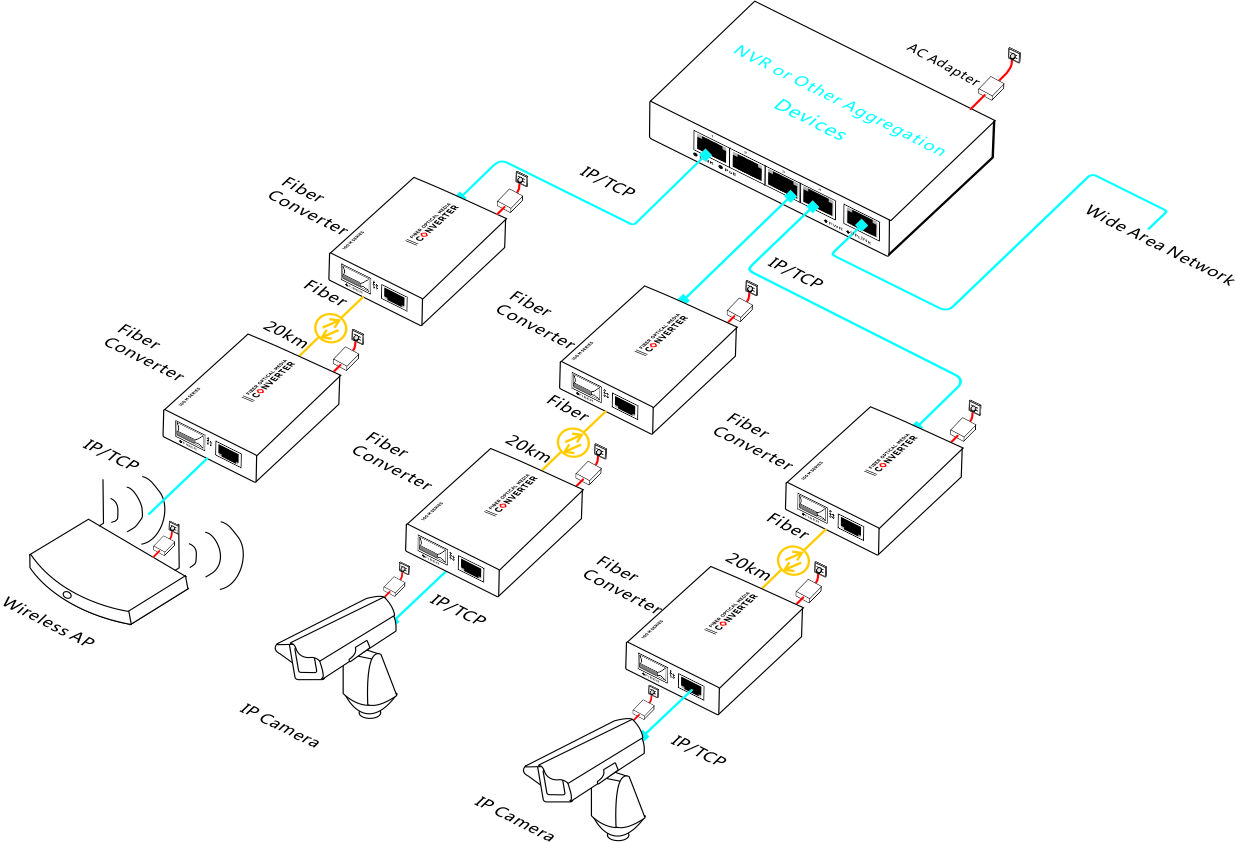

The ONV1110-SLX-F is a Gigabit fiber media converter independently developed by ONV. It has 1*10/100/1000Base-T RJ45 port and 1*1.25G uplink SFP fiber port. Users can select different optical modules, such as multi-mode dual fiber, single-mode dual fiber, and single-mode single fiber. The media converter adopts enterprise-level telecom-grade chip solutions with stable performance, excellent quality, and high-cost performance. It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost-effective and stable communication network. Unmanaged mode, plug and play, no configuration, and easy to use.
FEATURE
Gigabit photoelectric Ethernet conversion transmission
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
◇ Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Easy to use
◇ Support full-duplex/half-duplex working mode with auto-negotiation function.
◇ Automatic identification of twisted pair MDI/MDI-X cross lines and parallel lines.
◇ LED working status indication for network diagnosis and fault checking, reducing maintenance workload.
◇ Compatible with IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X network protocols, port 10/100/1000M rate auto-negotiation.
◇ Plug and play, no configuration, centralized power supply, and centralized connection management through 2U-14 slot rack.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, no fan, galvanized steel housing, and excellent heat dissipation ensure stable operation of the product.
ORDERING INFORMATION
|
Model |
Description |
|
ONV1110-MLX-F |
Gigabit multi-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 850nm/ 0-550m. External power supply. |
|
ONV1110-SLX-F |
Gigabit single-mode dual fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV1110S-SLX-A |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1310nm/ 0-20km. External power supply. |
|
ONV1110S-SLX-B |
Gigabit single-mode single fiber media converter with 1*10/100/1000M RJ45 port and 1*1.25G SFP fiber port. Total power is 4W. 1550nm/0-20km. External power supply. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
2-port Gigabit single-mode dual fiber media converter |
1 |
Set |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card and Certificate of Conformity |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV1110-MLX-F |
ONV1110-SLX-F |
ONV1110S-SLX-A/B |
|
|
Interface Characteristics |
||||
|
Fixed Port |
1*1.25G uplink SFP fiber port (Data) 1*10/100/1000Base-T RJ45 port (Data) |
|||
|
Ethernet Port |
10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
|||
|
Optical Fiber Port |
1.25G multi-mode dual fiber LC interface |
12.5G single-mode dual fiber LC interface |
1.25G single-mode single fiber LC interface |
|
|
Optical Cable/ Distance |
Multi-mode: 850nm/ 0-550m |
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km |
||
|
Chip Parameter |
||||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x |
|||
|
Forwarding Mode |
Store and forward (Full wire speed) |
|||
|
Switching Capacity |
2.0Gbps (non-blocking) |
|||
|
Forwarding Rate @64byte |
3.0Mpps |
|||
|
MAC |
2K |
|||
|
Buffer Memory |
1M |
|||
|
LED Indicator |

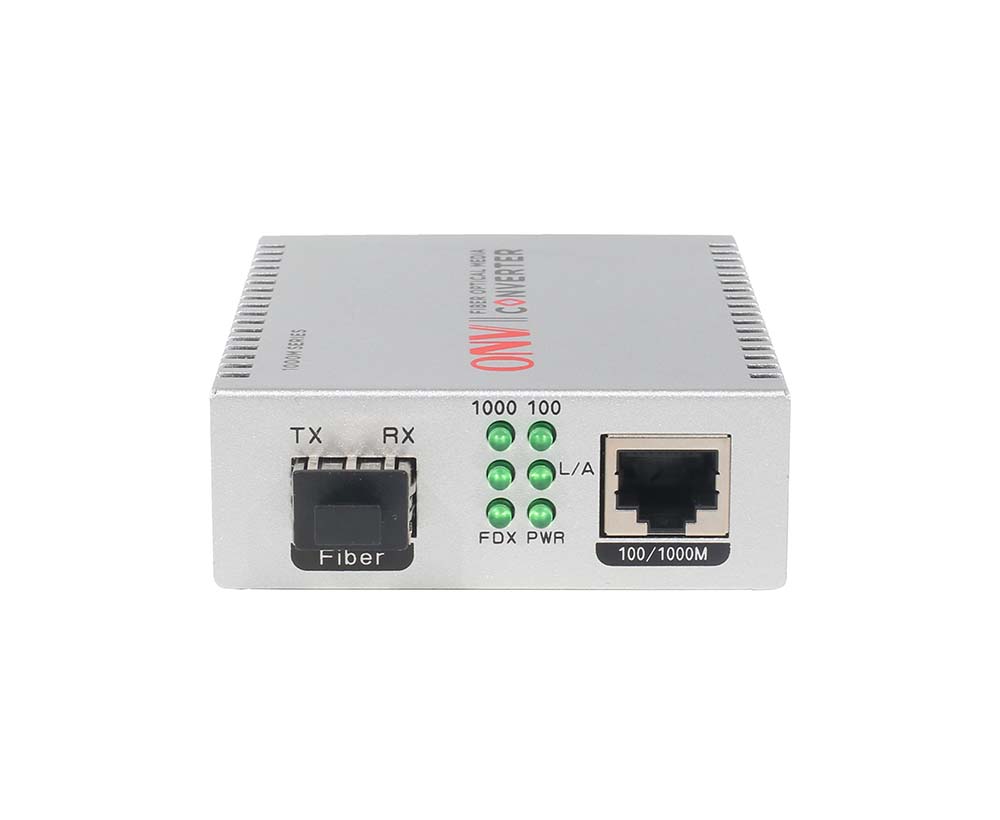

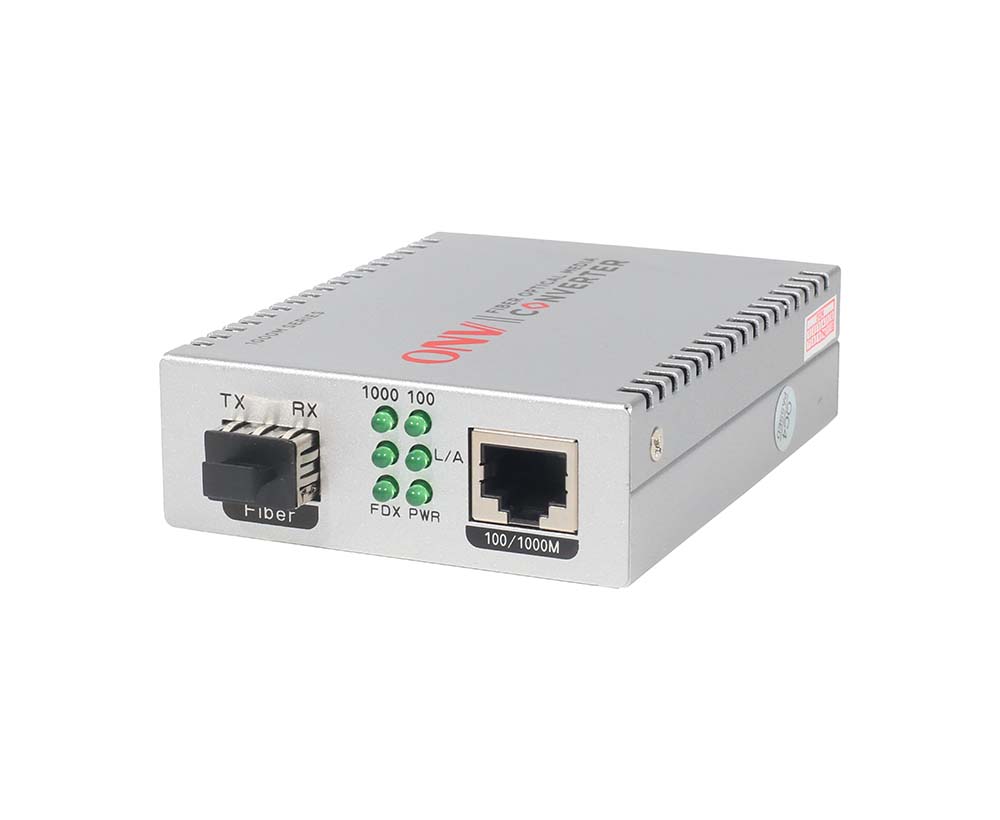

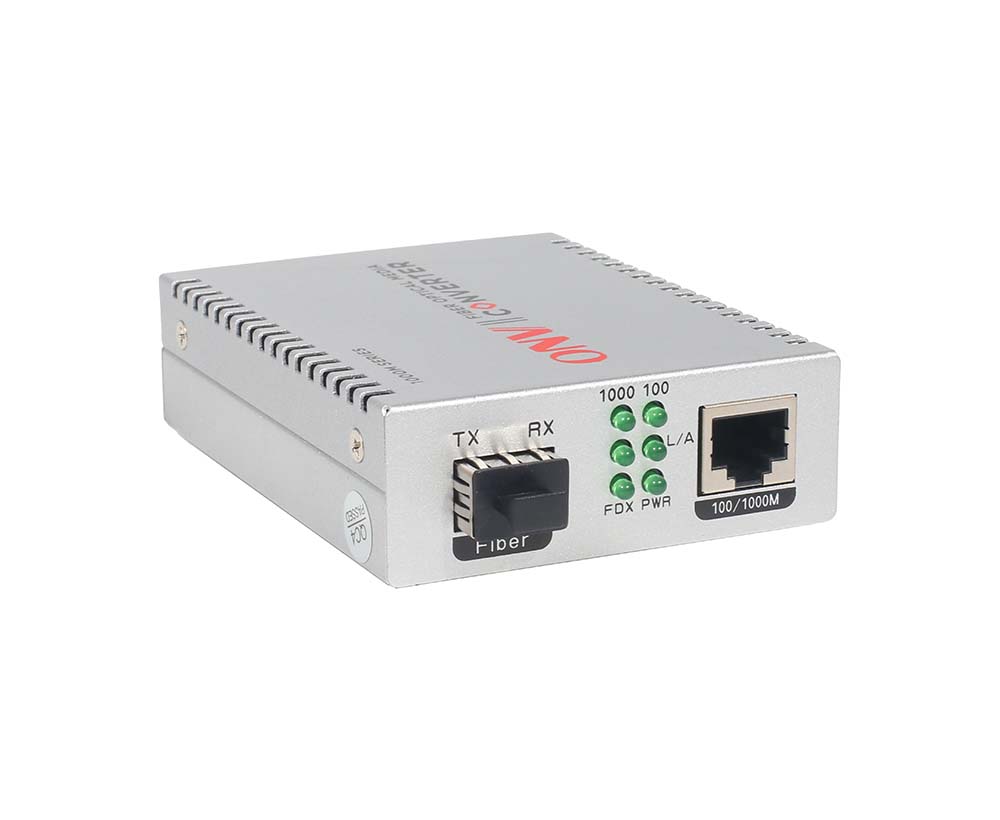

Power: PWR (Green), Network: L/A (Green), Half/full duplex: FDX (Green), Rate: 100/1000 (Green: 1000M/on, 100M/off) |
|||
|
Power Supply |
||||
|
Total PWR/ Input Voltage |

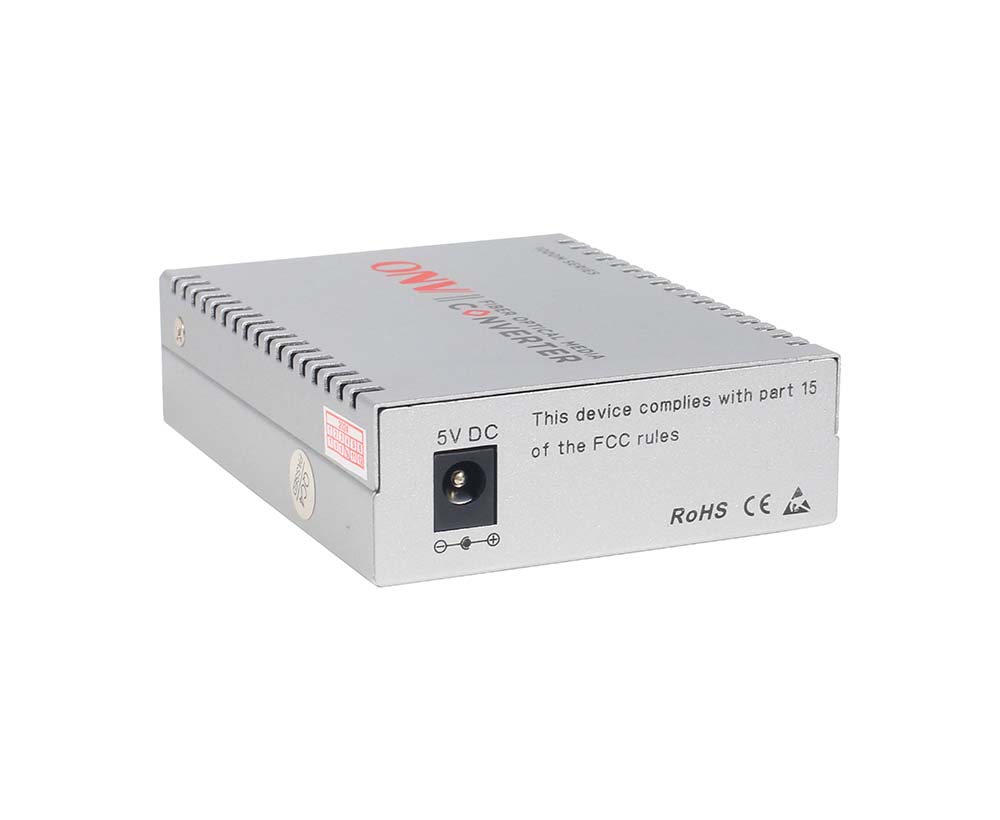

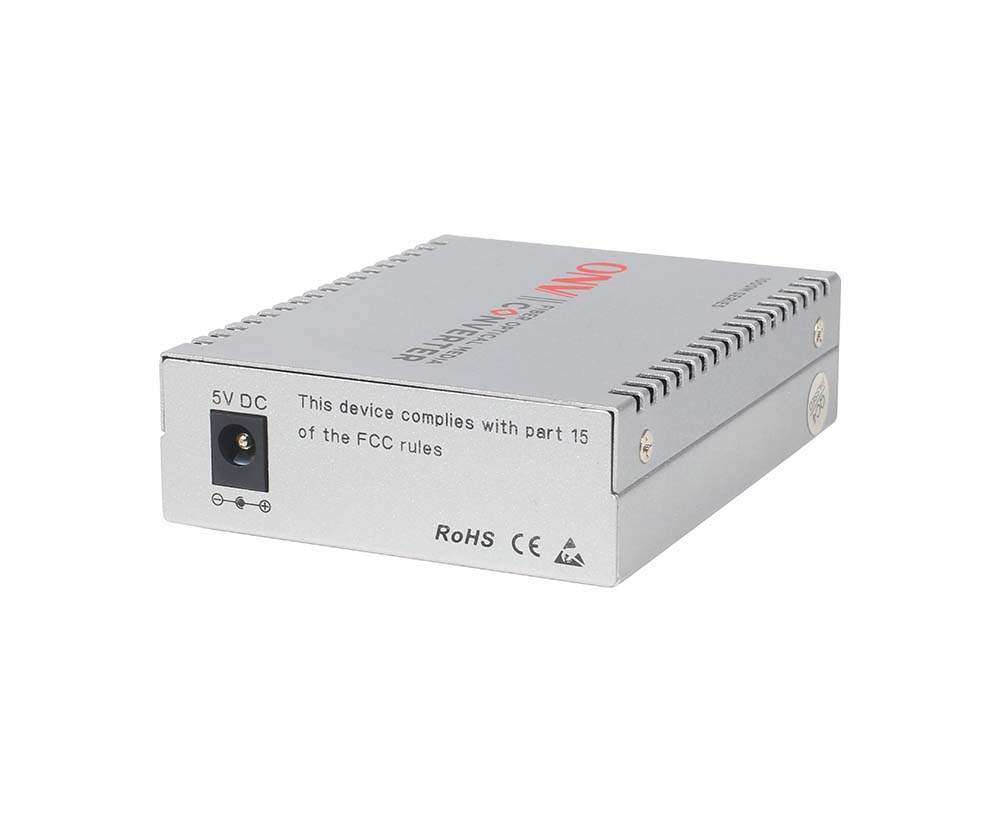

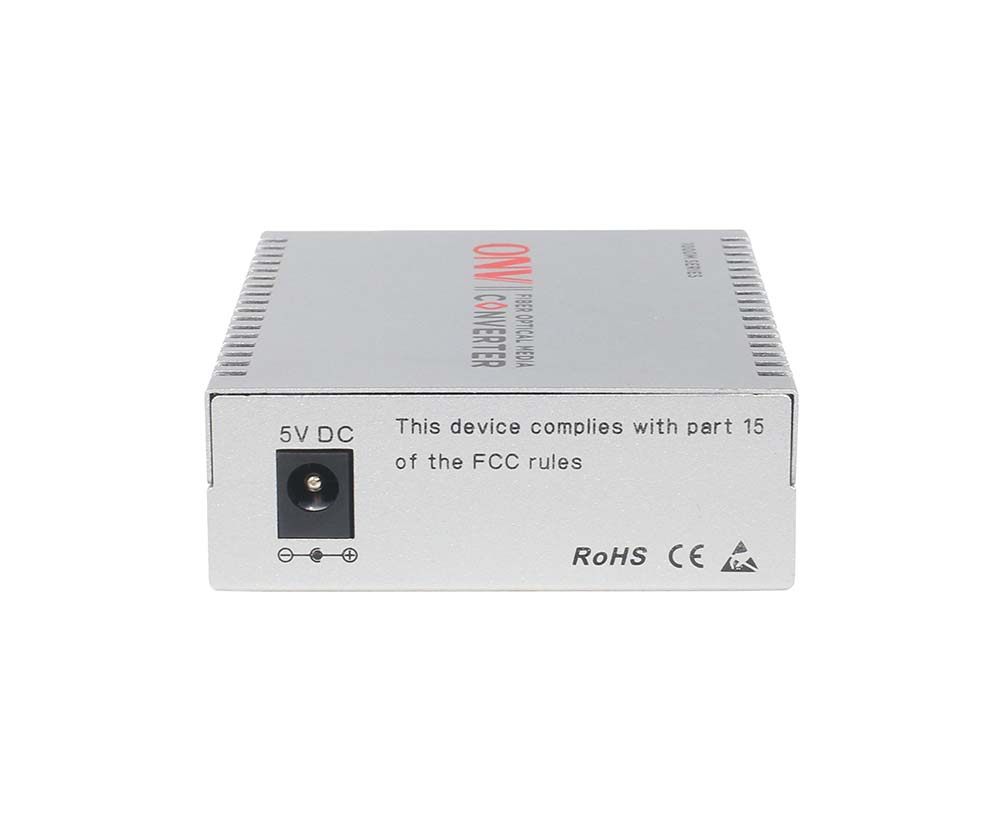

3.5W/ (5VDC) |
|||
|
Power Consumption |
Standby<1W, Full Load<4W |
|||
|
Physical Parameter |
||||
|
Operation Temp/ Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|||
|
Storage Temp/ Humidity |
-40°C~+85°C, 5%~95% RH Non condensing |
|||
|
Dimension (L*W*H) |
106.7*72*26mm |
|||
|
Net /Gross Weight |
0.3kg / 0.45kg |
|||
|
Installation |
Desktop, 2U-14 slot rack |
|||
|
Certification & Warranty |
||||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
|||
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|||
|
Warranty |
3 years, lifelong maintenance. |
|||
