OVERVIEW

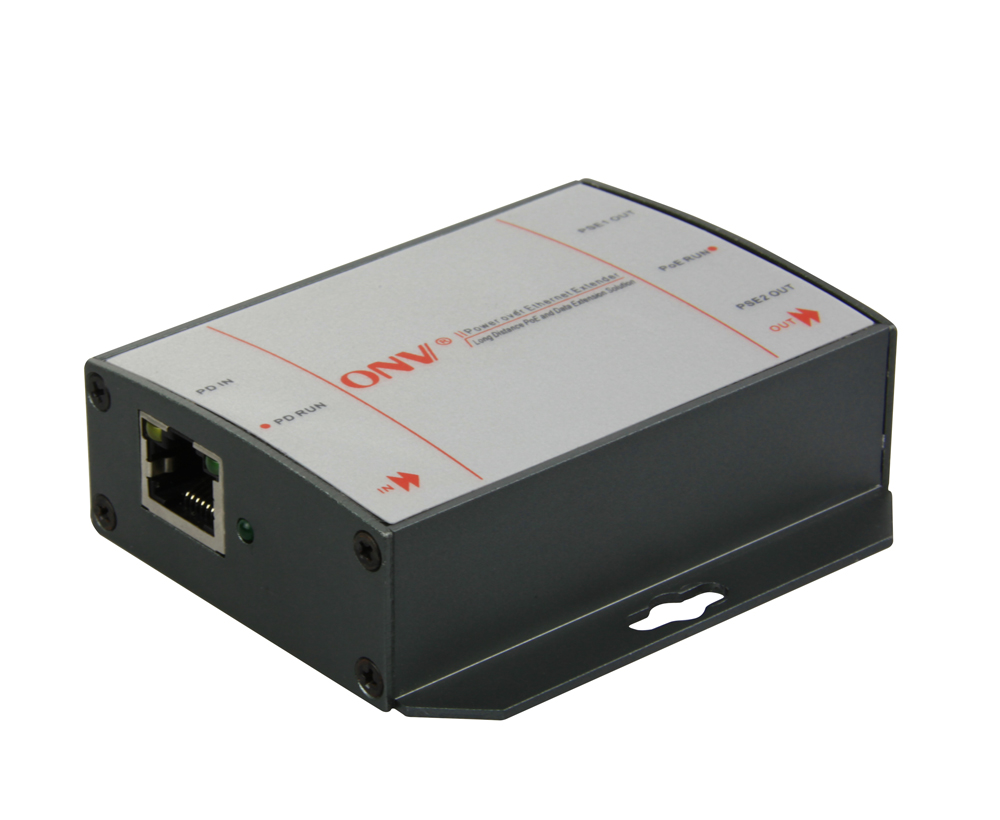

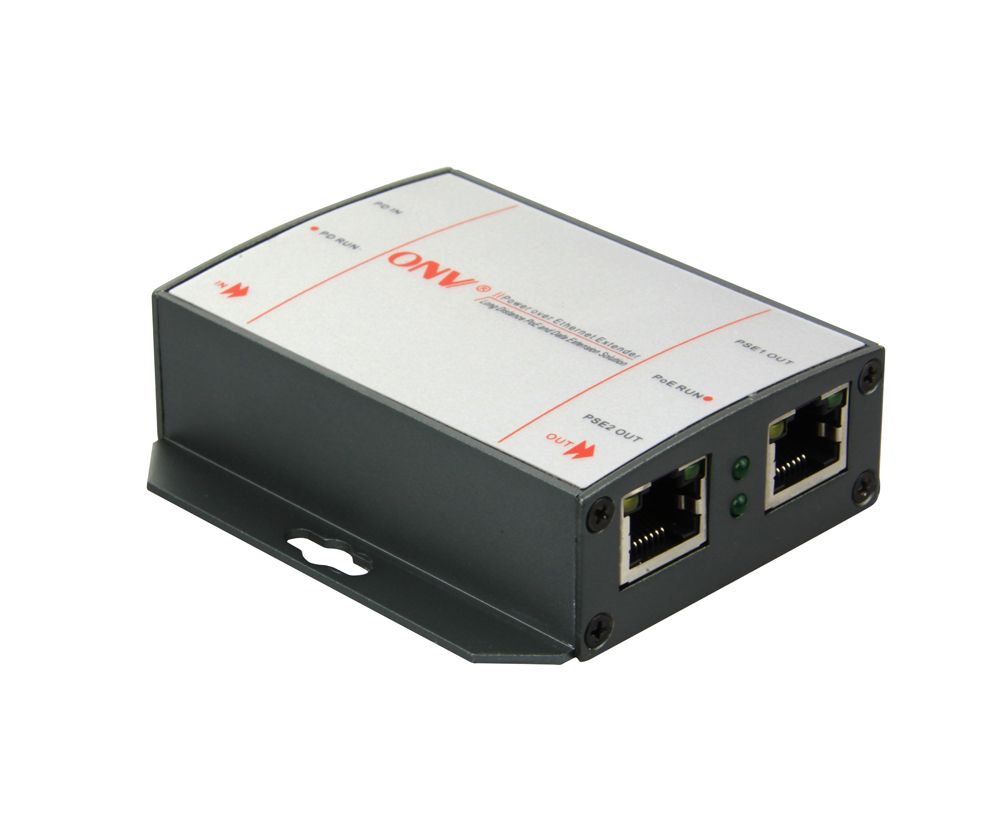

The ONV-PSE-PD3102 is an unmanaged PoE extender with 2*10/100M RJ45 ports and 1*10/100M uplink RJ45 port. Port 1-2 supports IEEE 802.3 af/at PoE standard. Single-port PoE power max is 30W and PoE output power max is 24W. The uplink port is a power receiving port and the input power must be greater than 24W to meet the PoE power supply requirements of port 1-2. As a PoE power supply device can automatically detect and identify powered devices that meet standards and power them through network cables. It can supply power to PoE terminal equipment such as wireless AP, IP camera, Internet phone, and video door intercom through network cables, meeting the network environment that requires a high-density PoE power supply and solves twisted-pair PoE transmission within a range of 200 meters without loss of bandwidth. application. It is suitable for hotels, campuses, parks, scenic spots, factory dormitories, and SMB small and medium-sized enterprises to establish cost-effective networks.
Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
10/100M access, Uplink power receiving port
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ 3*10/100Base-TX RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.
Intelligent PoE power supply
◇ 2*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in various security scenarios.
◇ Complies with IEEE 802.3 af/at PoE standard and automatically identifies PoE devices for power supply without damaging non-PoE devices. The max PoE output power is 24W, and single-port max PoE output power is 30W.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Low power consumption, fanless quiet design, metal shell, excellent heat dissipation.

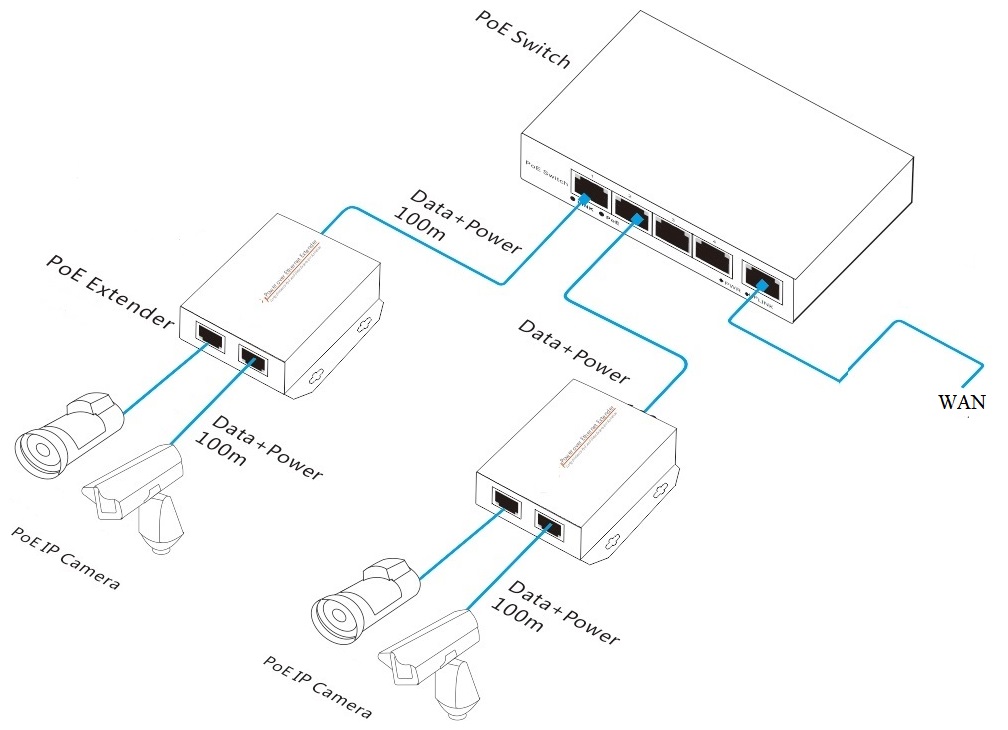

◇ PoE extender does not require an external power supply when working and can solve network cable transmission within 200 meters.

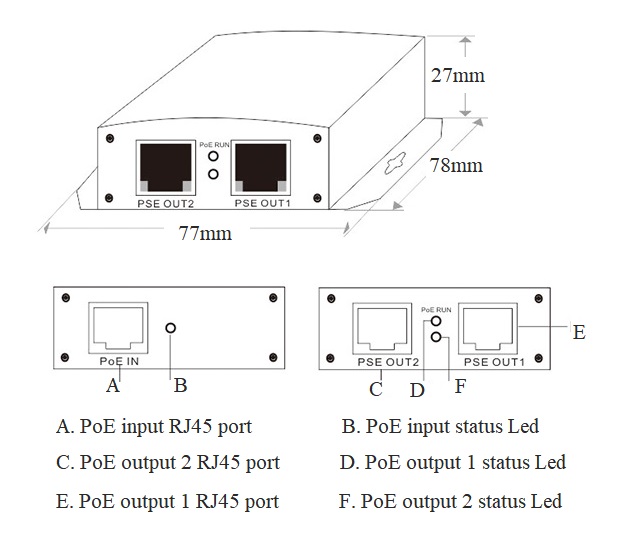

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-PSE-PD3102 |
Unmanaged PoE extender with 2*10/100M RJ45 ports and 1*10/100M uplink RJ45 port. Port 1-2 support IEEE 802.3 af/at PoE standard, and the uplink port supports 24W PoE input. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
3-port 10/100M PoE extender |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
TECHNICAL SPECIFICATION
|
Model |
ONV-PSE-PD3102 |
|
Interface Characteristics |
|
|
Fixed Port |
2*10/100Base-TX PoE ports (Data/Power) 1*10/100Base-TX uplink power receiving port (Data/Power) |
|
Ethernet Port |
Port 1-3 support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
Chip Parameter |
|
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
1.6Gbps(non-blocking) |
|
Forwarding Rate@64byte |
0.45Mpps |
|
MAC |
1K |
|
Buffer Memory |
98K |
|
LED Indicator |
Power: PWR (Green), POE: PoE (Green) |
|
PoE & Power Supply |
|
|
PoE Port |
Port 1 to 2 |
|
Power Supply Pin |
1/2(+) 3/6(-) |
|
Max Power Per Port |
30W |
|
Total Power |
24W |
|
Power Consumption |
Standby<1W, Full load<24W |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20°C~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40°C~+80°C, 5%~95% RH Non condensing |
|
Dimension (L*W*H) |
78*77*27mm |
|
Net /Gross Weight |
<0.11kg /<0.16kg |
|
Installation |
Desktop, wall mount |
|
Certification & Warranty |
|
|
Lightning Protection |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
|
Warranty |
3 years, lifelong maintenance. |
