OVERVIEW

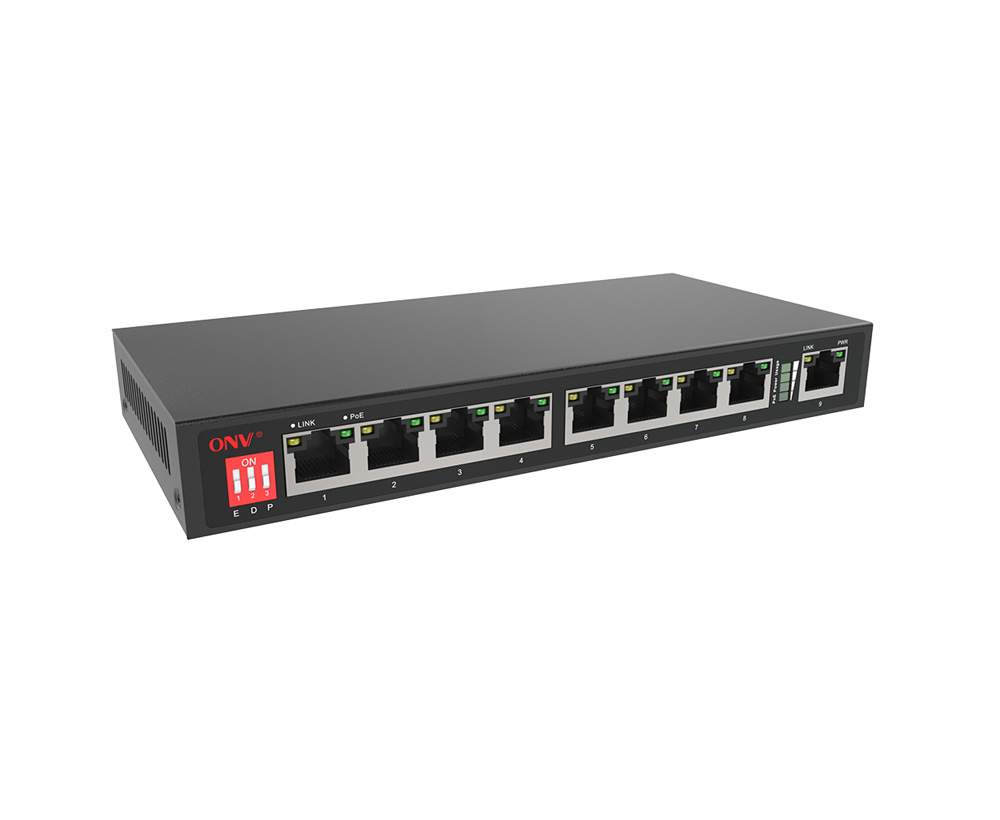

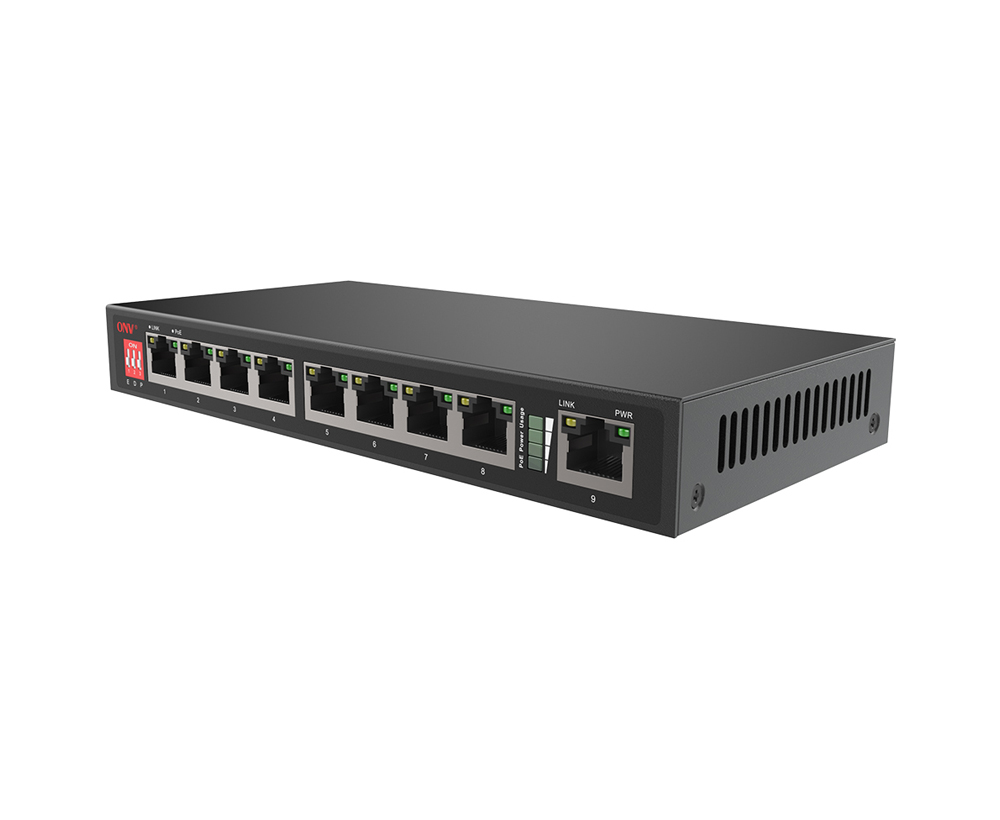

The ONV-POE31008PLD is a smart PoE switch independently developed by ONV. It has 9*10/100Base-TX RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. Port 1-8 can support the PoE watchdog function. When the port communication failure corresponds to the port PoE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, and small and medium-sized enterprises to form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

10/100M access

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ 9*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.

Smart PoE power supply

◇ 8*10/100Base-TX PoE ports can support the PoE watchdog function, real-time detection of data communication status.

◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

◇ 8*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

Innovative function

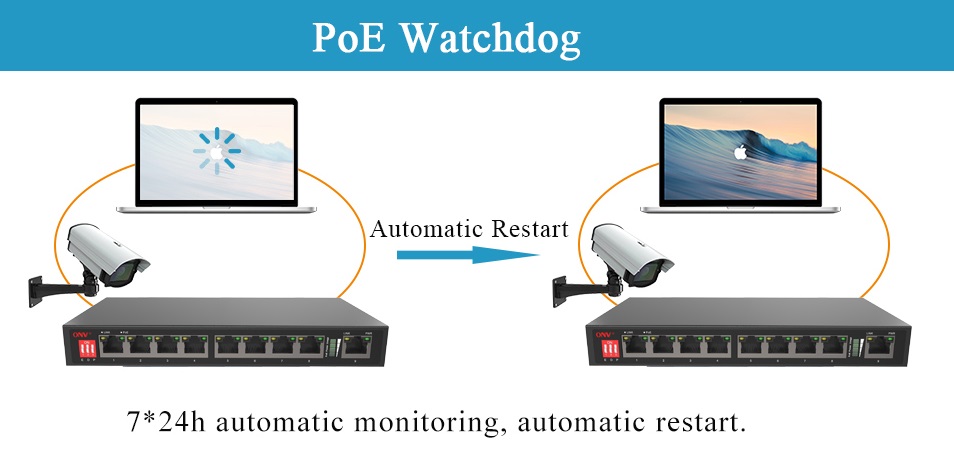

◇ AI PoE watchdog mode (D): When the switch status is ON, port 1-8 can support the watchdog function and automatically detect the data communication status in real time.

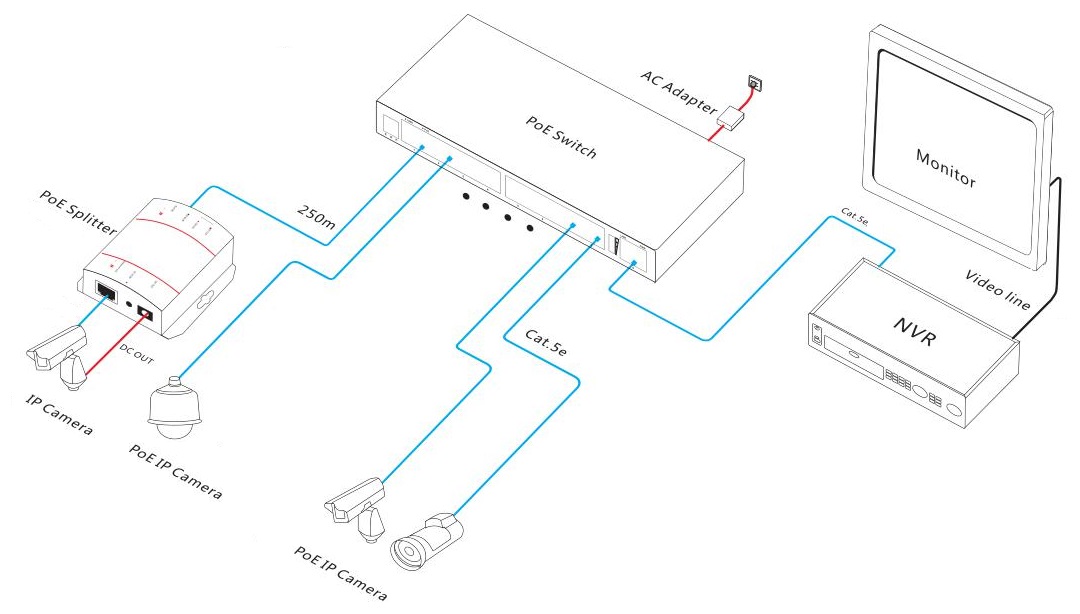

◇ long-distance transmission and VLAN mode (E): When the switch status is ON, Port 1-8 rate is 10M/250 meters transmission, the port physical VLAN isolated, broadcast storm.

◇ Real-time power and power priority mode (P): When the switch status is ON, the PoE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, easy to maintain.

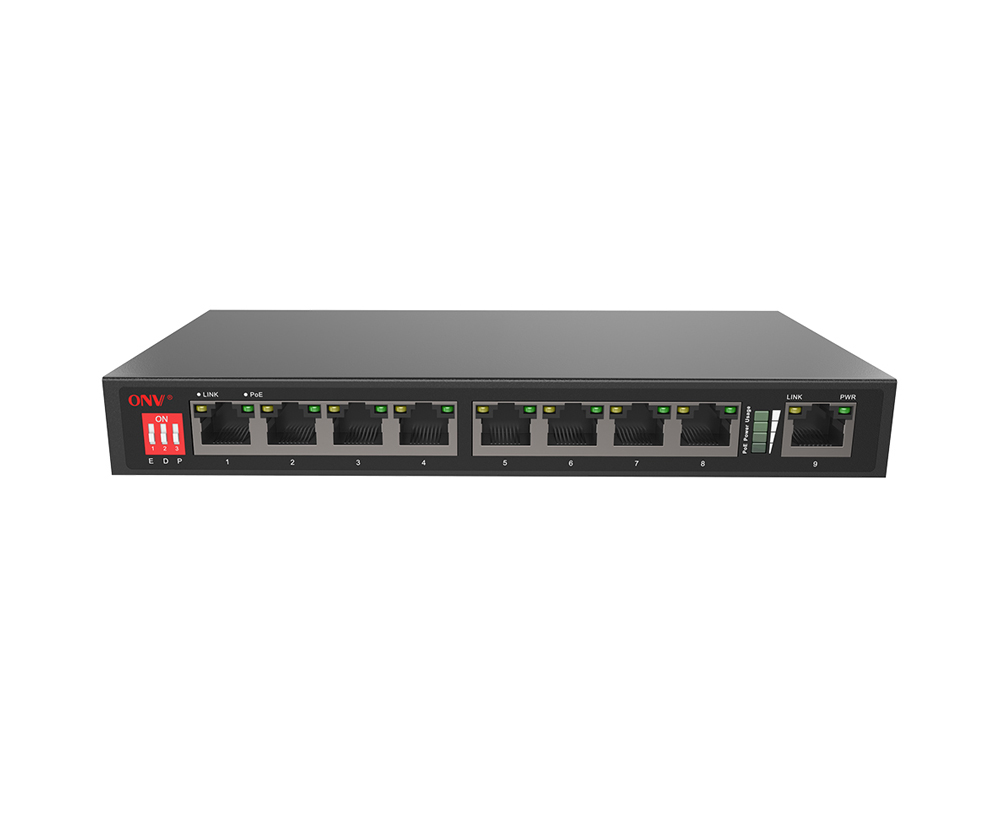

◇ The user-friendly panel can show the device status through the LED indicator of P, Link, and PoE.

◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

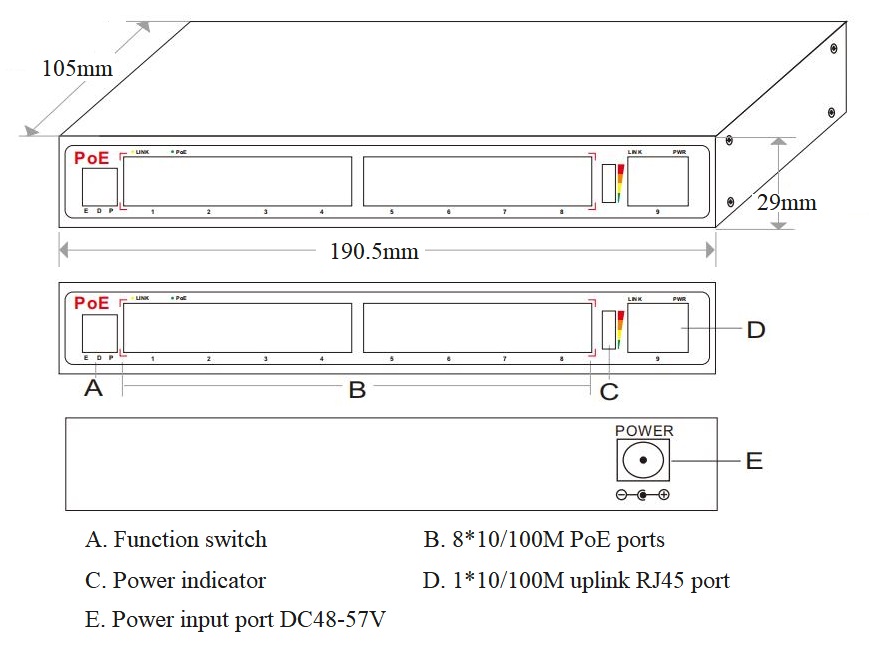

DIMENSION

ORDERING INFORMATION

PACKING LIST
