OVERVIEW

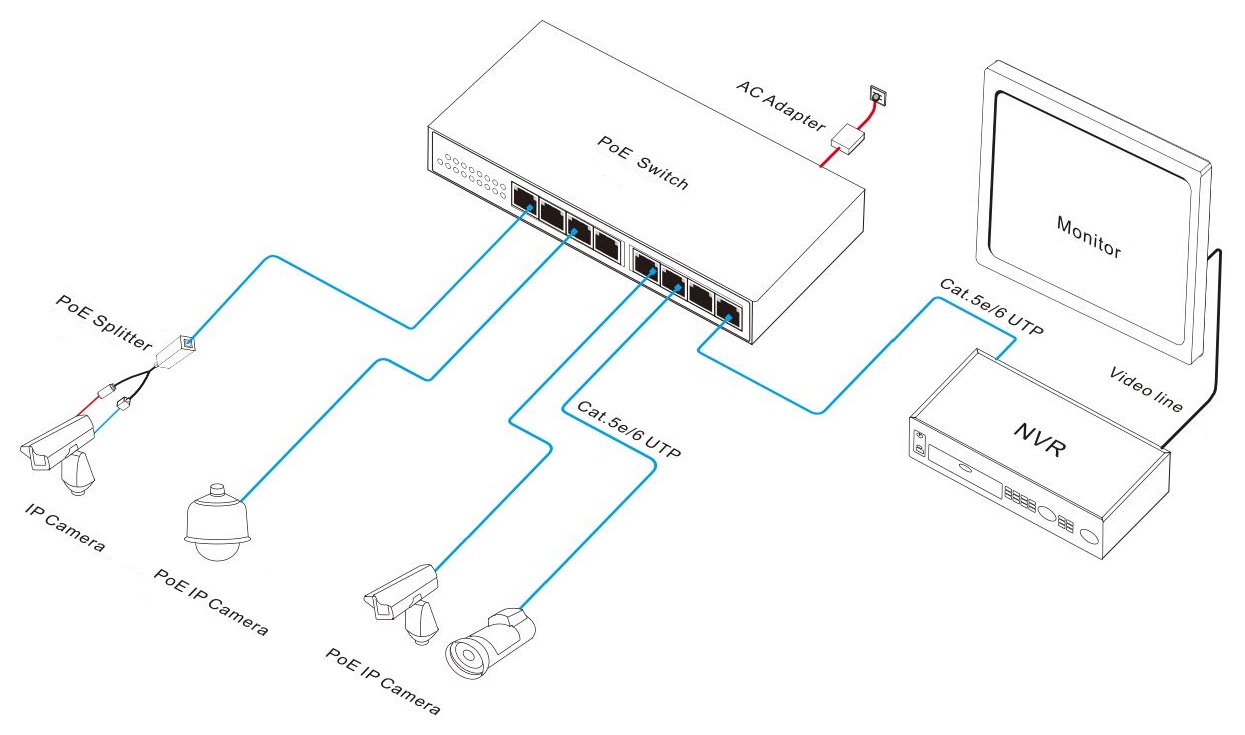

The ONV-POE33007P is a gigabit PoE switch independently developed by ONV. It has 8*10/100/1000M adaptive RJ45 ports. Port 1-7 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through a network cable, to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit access, full-line speed forwarding
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support full-line-speed high-speed forwarding, allowing users to flexibly network to meet networking needs in various scenarios.
Smart PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ 7*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

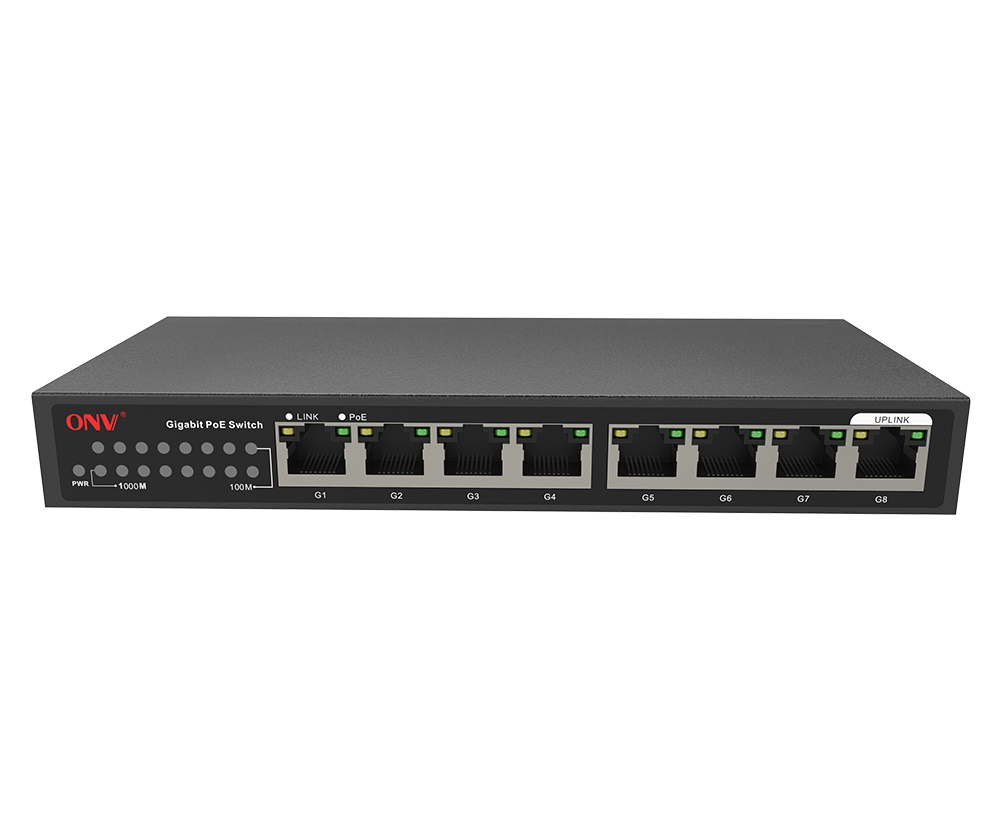

◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

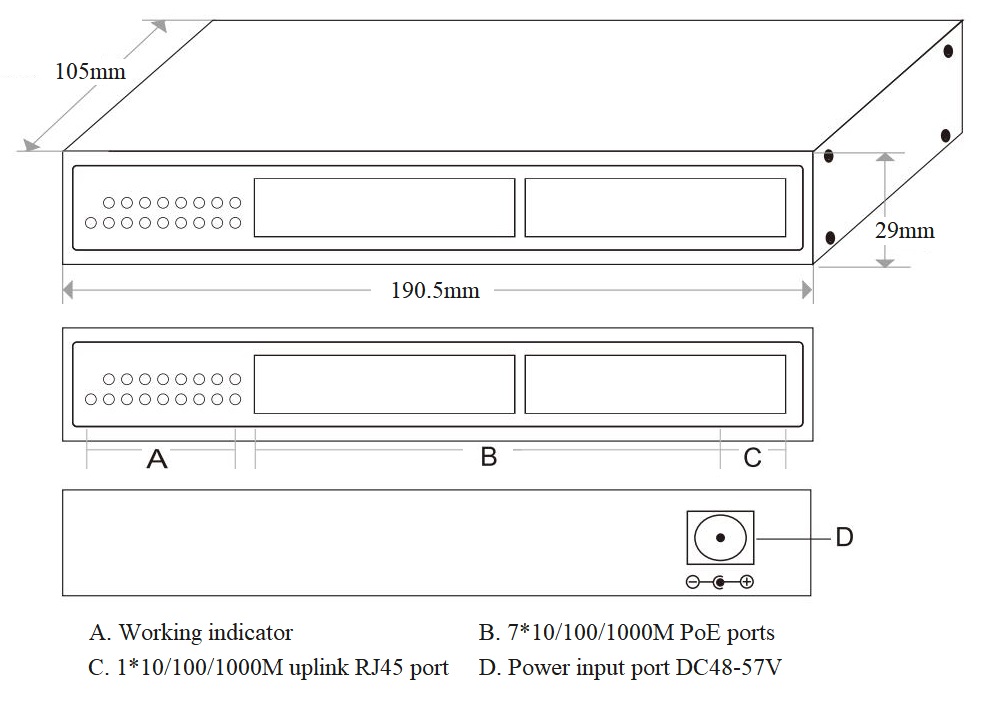

DIMENSION
ORDERING INFORMATION
|
Model |
Description |
|
ONV-POE33007P |
Unmanaged PoE power switch with 8*10/100/1000M RJ45 ports. Port 1-7 can support IEEE 802.3 af/at PoE standard. External 110W power supply. |
|
ONV-POE33007PN |
Unmanaged PoE power switch with 8*10/100/1000M RJ45 ports. Port 1-7 can support IEEE 802.3 af/at PoE standard. It built-in 130W power supply and 1U/19” cabinet installation. |
|
ONV-POE33007PN-at |
Unmanaged PoE power switch with 8*10/100/1000M RJ45 ports. Port 1-7 can support IEEE 802.3 af/at PoE standard. It built-in 250W power supply and 1U/19” cabinet installation. |
PACKING LIST
|
Packing List |
Content |
Qty |
Unit |
|
8-port full gigabit PoE switch |
1 |
SET |
|
|
Power supply kit (AC power line + power adapter) |
1 |
SET |
|
|
Mounting Kits (Hanging Ear) |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
RELATED PRODUCT
|
Model |
Description |
|
ONV-POE33108PF |
Unmanaged PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It built-in 130W power supply and 1U/19” cabinet installation. |
|
ONV-POE33128PF |
Unmanaged PoE fiber switch with 10*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard. It built-in 130W power supply and 1U/19” cabinet installation. |
|
ONV-POE33016PF |
Unmanaged PoE fiber switch with 16*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-16 can support IEEE 802.3 af/at PoE standard. It built-in 250W power supply and 1U/19” cabinet installation. |
|
ONV-POE33020PF |
Unmanaged PoE fiber switch with 18*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-16 can support IEEE 802.3 af/at PoE standard. It built-in 250W power supply and 1U/19” cabinet installation. |
|
ONV-POE33024PF |
Unmanaged PoE fiber switch with 24*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. It built-in 400W power supply and 1U/19” cabinet installation. |
|
ONV-POE33028PF |
Unmanaged PoE fiber switch with 26*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. It built-in 400W power supply and 1U/19” cabinet installation. |
TECHNICAL SPECIFICATION
|
Model |
ONV-POE33007P |
ONV-POE33007PN |
ONV-POE33007PN-at |
|
Interface Characteristics |
|||
|
Fixed Port |
7*10/100/1000Base-T PoE port (Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) |
||
|
Ethernet Port |
Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
||
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
||
|
Chip Parameter |
|||
|
Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x |
||
|
Forwarding Mode |
Store and Forward (Full Wire Speed) |
||
|
Switching Capacity |
16Gbps (non-blocking) |
||
|
Forwarding Rate @64byte |
11.9Mpps |
||
|
MAC |
8K |
||
|
Buffer Memory |
2M |
||
|
Jumbo Frame |
9.6K |
||
|
LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Speed: 100M/ 1000M (Green) |
||
|
PoE & Power Supply |
|||
|
PoE Port |
Port 1-7 |
||
|
Power Supply Pin |
1/2(+) 3/6 (-) |
||
|
Max Power Per Port |
30W, IEEE 802.3 af/at |
||
|
Total PWR / Input Voltage |
110W/ DC52V |
130W / AC100-240V |
250W / AC100-240V |
|
Power Consumption |
Standby<5W, Full Load<110W |
Standby<6W, Full Load<120W |
Standby<7W, Full Load<240W |
|
Power Supply |
External power supply, AC100~240V 50-60Hz, 2.0A |
Built-in power supply, AC100~240V 50-60Hz, 2.3A |
Built-in power supply, AC100~240V 50-60Hz, 4.1A |
|
Physical Parameter |
|||
|
Operation TEMP/ Humidity |
-20~+55°C, 5%~90% RH Non condensing |
||
|
Storage TEMP/ Humidity |
-40~+75°C, 5%~95% RH Non condensing |
||
|
Dimension (L*W*H) |
190.5*105*29mm |
270*181*44.5mm |
|
|
Net /Gross Weight |
0.5kg /1.1kg |
1.2kg /1.8kg |
1.4kg /2.1kg |
|
Installation |
Desktop, wall mount |
Desktop, wall mount, 1U/19” cabinet |
|
|
Certification & Warranty |
|||
|
Lightning Protection |
Lightning protection: 4KV 8/20us, Protection level: IP30 |
||
|
Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
||
|
Warranty |
3 years, lifelong maintenance. |
||
