Comutador Ethernet de 5 portas 10/100M-Segurança Ethernet Switch

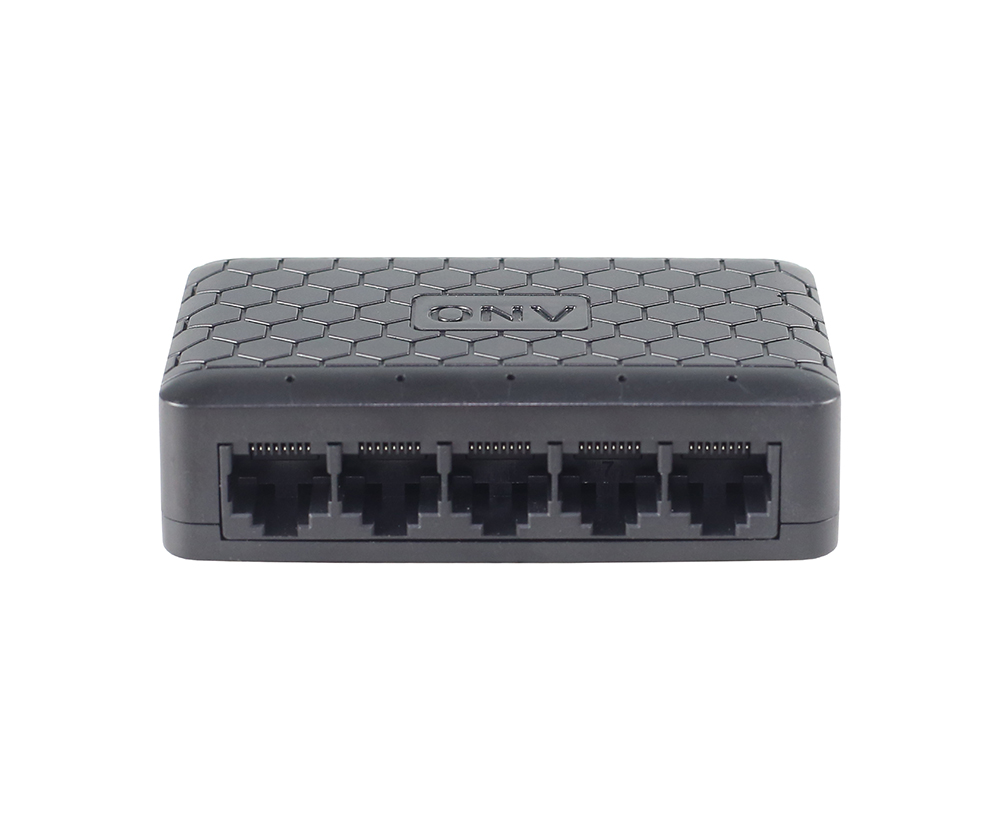

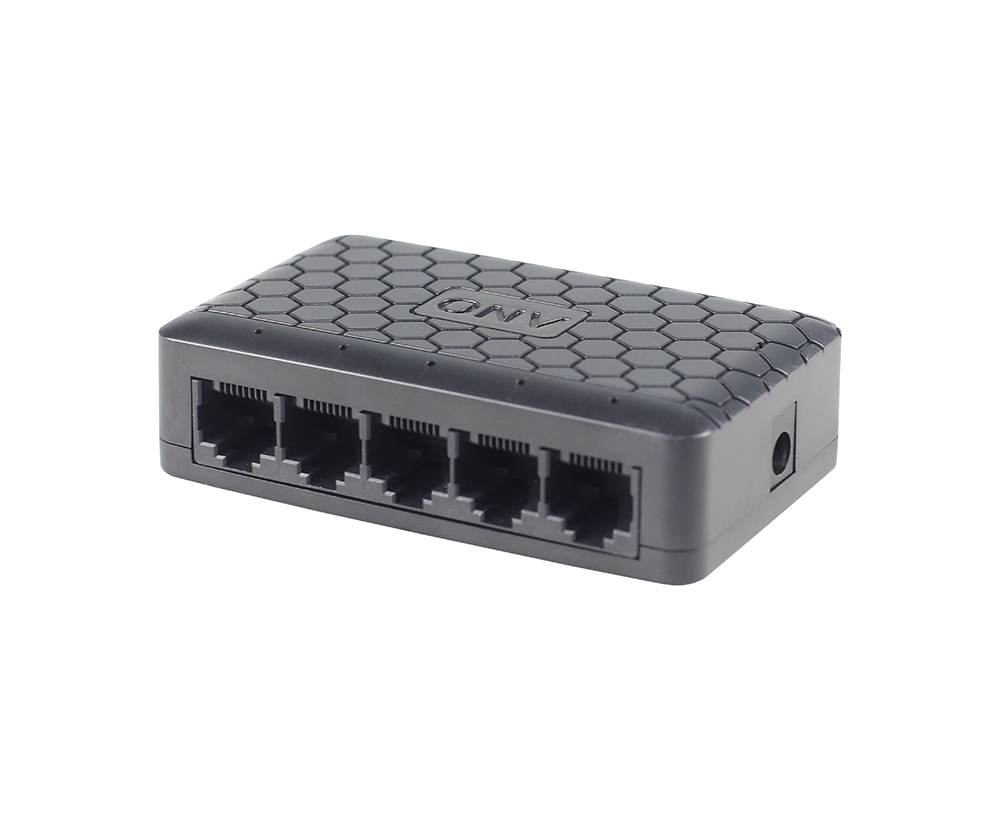

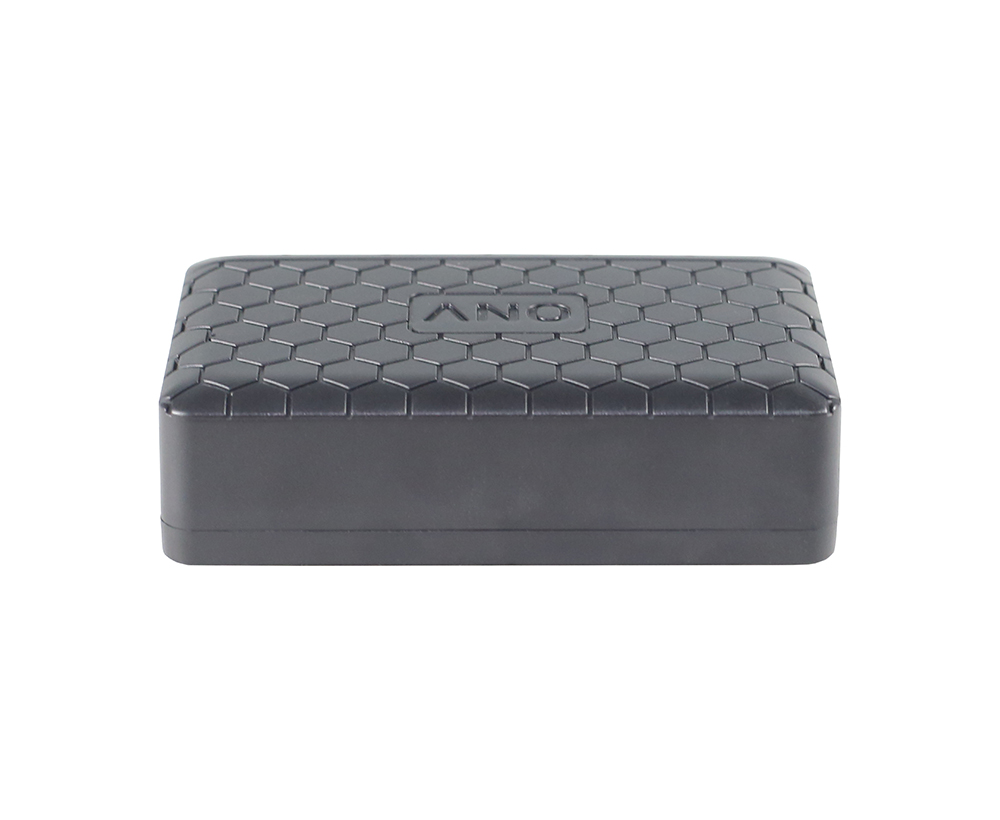

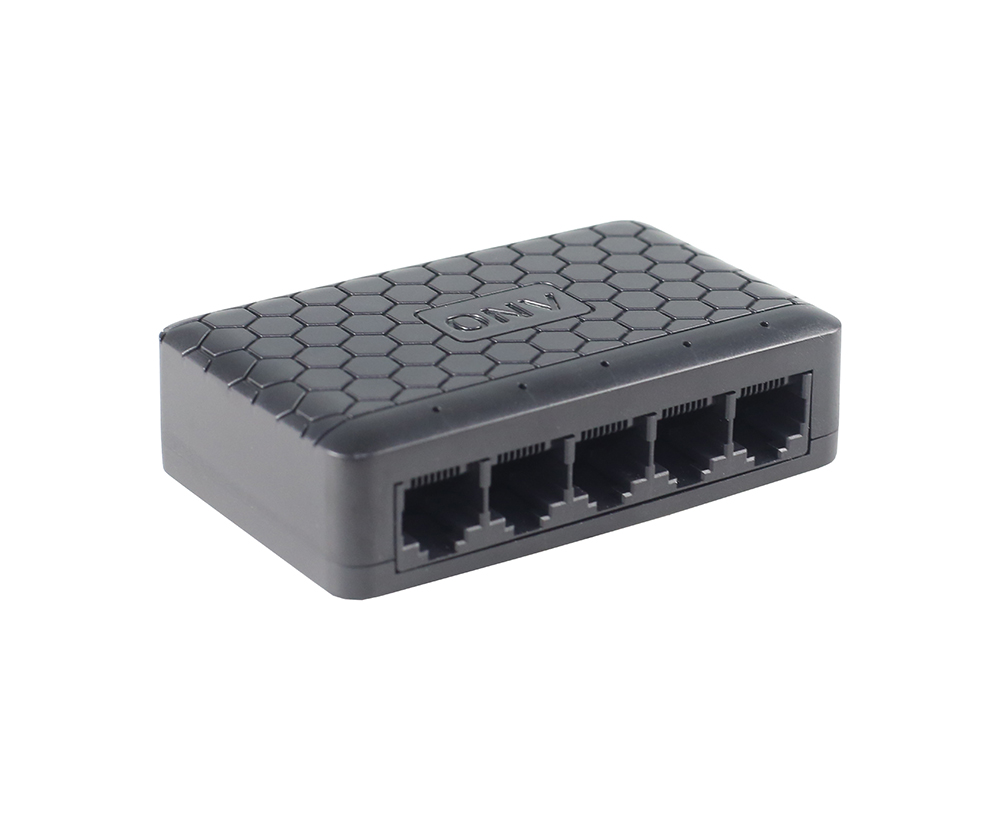

Comutador Ethernet de 5 portas 10/100M

Modelo： ONV-H1005ES

Switch Ethernet não gerenciado com portas RJ45 5*10/100M. Adaptador externo do poder.

Quero fazer um inquérito para

Síntese
Especificação técnica

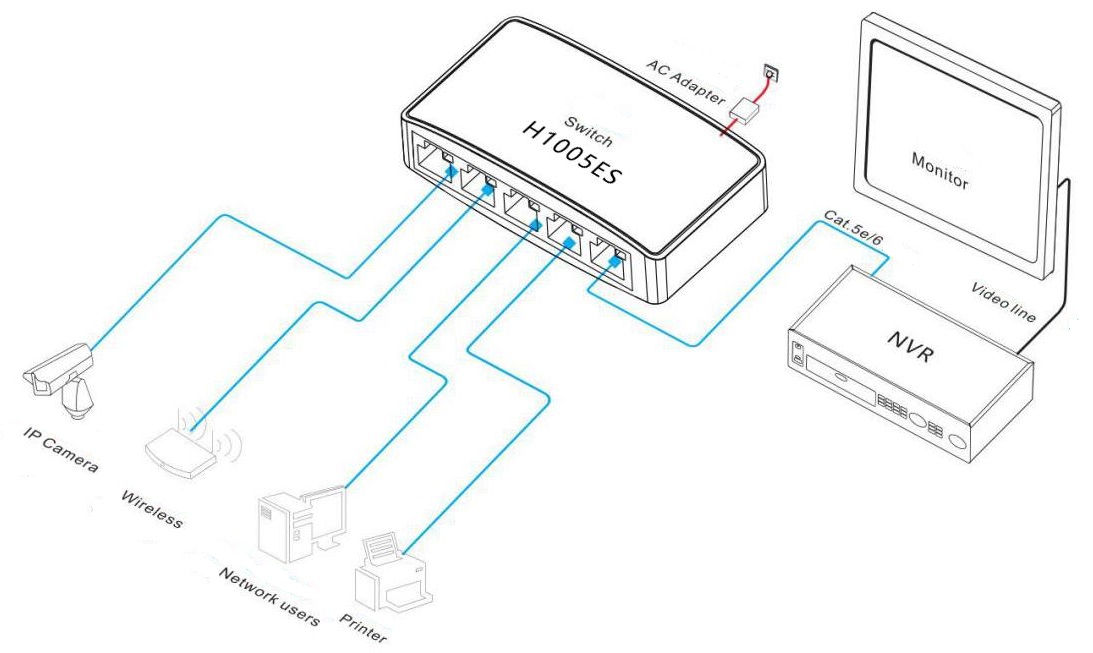

Aplicação
Documentos
Produtos relacionados

OVERVIEW

The ONV-H1005ES is an unmanaged 10/100M Ethernet switch independently developed by ONV. It has 5*10/100Base-TX adaptive RJ45 ports. The scheme of the large backplane and large cache switching chip is preferred to improve the forwarding rate of large files and effectively solve the problems of video freeze and picture loss in the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory quarters, and small and medium-sized enterprises to establish a cost-effective network. Unmanaged model, plug and play, no configuration, simple and convenient to use.

FEATURE

10/100M line speed transmission

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, no fan, flame retardant plastic casing.

◇ The user-friendly panel can show the device status through the LED indicator of Link/ Act and PWR.

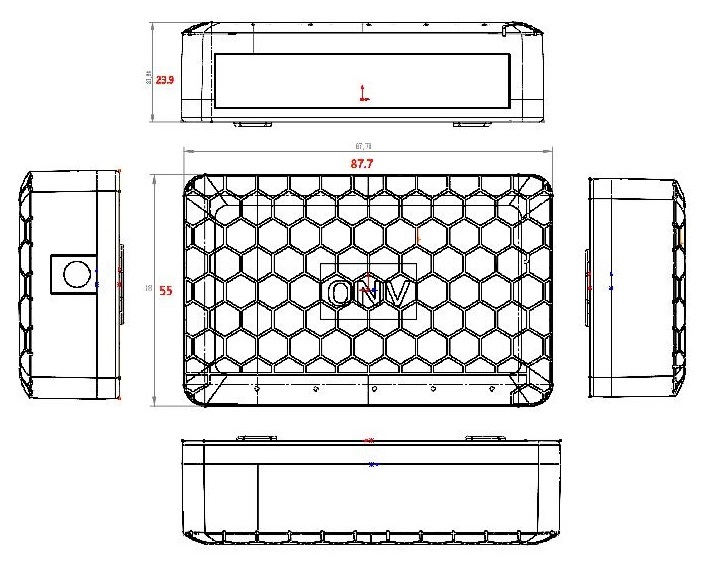

DIMENSION

ORDERING INFORMATION

Model	Description	External Power Adapter
ONV-H1005ES	Unmanaged Ethernet switch with 5*10/100M RJ45 ports. External power adapter.	DC5V/1A
ONV-H1008ES	Unmanaged Ethernet switch with 8*10/100M RJ45 ports. External power adapter.	DC5V/1A

PACKING LIST

Packing List	Content	Qty	Unit
	5-port 10/100M Ethernet switch	1	SET
	Power Adapter 5V/1A	1	PC
	User Guide	1	PC
	Warranty Card	1	PC

TECHNICAL SPECIFICATION

Model	ONV-H1005ES	ONV-H1008ES
Interface Characteristics
Fixed Port	5*10/100Base-TX RJ45 ports (Data)	8*10/100Base-TX RJ45 ports (Data)
Ethernet Port	10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption.
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1Gbps (Non-blocking)	1.6Gbps (Non-blocking)
Forwarding Rate @64byte	0.74Mpps	1.19Mpps
MAC	1K
Buffer Memory	512K	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Network: Link/ Act(Green)
Power Supply
Total PWR / Input Voltage	5W/ (DC5V)
Power Consumption	Standby<1W, Full Load<2W	Standby<1W, Full Load<3W
Power Supply	External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation TEMP/ Humidity	0°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40°C~+75°C, 5%~95% RH Non condensing
Dimension (LWH)	87.75523.9mm	1325523.9mm
Net /Gross Weight	0.08kg /0.18kg	0.1kg /0.2kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.
